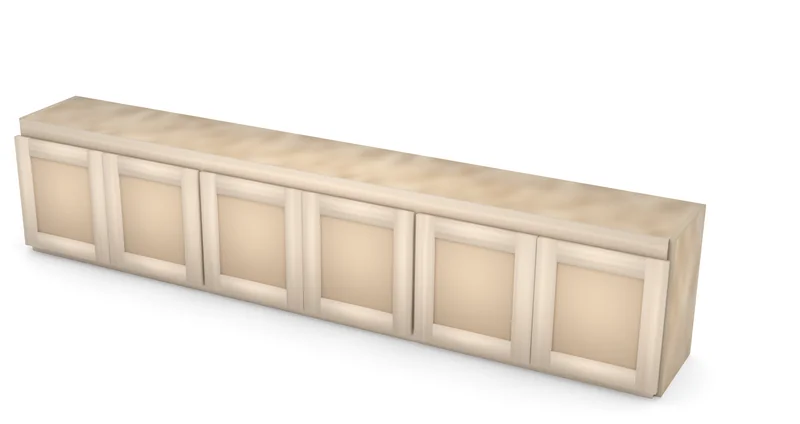

Rendering. Ships unfinished (ready to paint).
Pulls shown for styling only. Hardware not included; doors ship undrilled.
84" x 18" Entertainment Center Bridge with Doors - Brushhollow Flat Panel
Paint: RecommendedStain: Not recommended
About this bridge
This 84" wide, 18" tall bridge is made for our 75" uppers on a 9' ceiling. It spans the top of your TV wall with a row of flat-panel Shaker doors across three bays, and its top lines up with the tops of the uppers. It ships as one built piece. It is sanded and ready for your paint, and it is fitted between the uppers on site as a contractor-level install.
Hardware: not included; doors ship undrilled, so you can add the pulls of your choice. Pulls shown in photos are for styling only.
TV opening
Typical TV sizes (approximate screen dimensions without stand, 16:9 screens, rounded to the nearest 1/2")
| Screen size (diagonal) | Approx. screen width | Approx. screen height |
|---|---|---|
| 50" | 43-1/2" | 24-1/2" |
| 55" | 48" | 27" |
| 65" | 56-1/2" | 32" |
| 75" | 65-1/2" | 37" |
| 85" | 74" | 41-1/2" |
| 98" | 85-1/2" | 48" |
| 100" | 87" | 49" |
These are screen dimensions only. Your TV's frame, stand or wall mount adds to them. Measure your TV before ordering; sizes vary by brand and model.

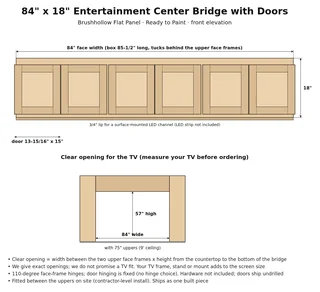

Specifications
| Clear opening for the TV: 84" wide, 57" high above the countertop (between 75" uppers, 9' ceiling) | |
| Size | 84" face width x 12" deep x 18" tall |
|---|---|
| Cabinet box | 85-1/2" long, ships as one piece; the box tucks behind the upper face frames, so there are no extra end stiles |
| Top of bridge | 105" off the floor, flush with 75" uppers |
| Three equal bays, each 27" wide, 14" tall, with 1-1/2" face frame mullions and single 3/4" dividers behind them | |
| Six doors | a pair of 13-15/16" doors in each bay, all 15" tall |
| Doors | flat-panel Shaker doors, about 3/4" thick, with poplar stiles and rails (2-1/4" wide), 1/2" overlay, with a 1/8" gap wherever two doors meet |
| Hinges | 110-degree face-frame hinges. Doors are in pairs in every bay (fixed; no hinge choice) |
| Hardware: not included; doors ship undrilled, so you can add the pulls of your choice. Pulls shown in photos are for styling only. | |
| Center panel | 1/4" MDF flat panel (5.6mm actual, in a 1/4" groove) |
| No adjustable shelf; 15-3/4" clear inside height | |
| Face frame | poplar, 2-1/2" top rail and 1-1/2" bottom rail. The installer trims the rails to fit on site |
| 3/4" lip along the underside, designed for a surface-mounted LED channel over the TV. The LED strip is not included | |
| Depth | 12" to the face of the frame, flush with the upper faces |
| Mounting | screws through the upper sides, and the hidden rear nailers screw to wall studs |
| Install | fitted between the uppers on site. This is a contractor-level install |
| Box | 3/4" 13-ply Baltic birch plywood |
| Back | 1/4" birch plywood (5.2mm actual) set in 1/4" wide dados, with the nailers hidden behind it (no visible interior nailers) |
| Ships sanded flat to 120 grit, ready to paint | |
| Approximate carton size | 88" x 15" x 20" (W x D x H) |
| Ships in | 1 carton (88 x 15 x 20 in, L x W x H) |
| Approximate shipping weight | 84 lb |
| SKU | ENT-BR18-84-FLAT |
Specifications as of October 2026. Delivery is priced by the mile in the cart.
Documents
- Brushhollow Entertainment Center Spec SheetConstruction, sizes and TV clear openings for the Brushhollow entertainment center (1 page).PDF · 60 KB
- Self-Finishing AgreementWhat you receive, how to prep and paint, and the agreement you accept at checkout.Web page
- Entertainment Center Installation GuideHow to set, level and fasten the entertainment center bases, towers and bridges.PDF · 117 KB
- Painting & Finishing GuideHow to sand, prime and paint your ready-to-paint cabinets for a durable finish.PDF · 108 KB
- Hardware & Hinge Adjustment GuideInstalling pulls and adjusting hinges and drawer fronts after installation.PDF · 104 KB
- Care & Maintenance GuideCleaning and caring for painted cabinets so they keep looking their best.PDF · 81 KB
Before you buy
This cabinet ships unfinished. Rough-sanded flat to 120 grit with major blemishes filled. You finish-sand before priming and painting.
Checkout requires accepting our Self-Finishing Agreement.
Inspect within 72 hours of delivery. Shipping & Delivery
